Here at Car Garage excellent we often work on high performance luxury cars that need specialist attention and excellent labour. We just finished a Mercedes S63 Brake Pad Replacement for a client reporting too much brake noise and a brake service notice on the dashboard.
The Mercedes S63 AMG is a high-performance luxury car with a twin-turbo V8 that needs a sophisticated braking system to handle the power. But even the most sophisticated braking systems need regular maintenance. If you ignore brake wear, you could end up with shattered rotors, bad braking performance, and expensive repairs.
Customer Complaint
The owner brought the vehicle to Car Garage Expert with the following concerns:
- When the brake pedal was pressed there were grinding and screeching noises.
- The instrument cluster shows a brake service warning notice.
- Less trust in braking performance.
The client reported that the noise had progressively deteriorated and now happened with practically every braking occurrence.
Because brake-related issues directly affect vehicle safety, our team immediately scheduled a comprehensive brake system inspection.
Vehicle Inspection and Diagnosis
After lifting the vehicle and removing all four wheels, our technicians conducted a detailed inspection of the braking system.
The inspection included:
- Front brake pad condition
- Rear brake pad condition
- Brake disc inspection
- Brake wear sensor testing
- Brake caliper inspection
- Brake hardware assessment
The results clearly showed that the vehicle urgently required a Mercedes S63 Brake Pad Replacement.
Front Brake Pad Condition
The front brake pads were completely worn out.
The friction material had worn down to a critical level, causing direct metal-to-metal contact between the backing plate and the brake rotor.
This was the primary source of the grinding noise reported by the customer.
Rear Brake Pad Condition
The rear brake pads were also heavily worn and had reached the end of their service life.
Continued driving in this condition could have significantly reduced braking efficiency and increased stopping distances.
Damaged Brake Discs
The brake pads had worn out past their acceptable wear limits and all four brake discs were damaged.
We saw:
- Deep grooving of the rotor surface
- Irregular wear patterns
- Overheat markings from friction
Luckily the rotor thickness readings were still within Mercedes-Benz norms thus all that would be needed was resurfacing of the discs rather than replacement.
Brake Wear Sensors Activated
The electronic brake wear sensors had correctly detected excessive pad wear and triggered the dashboard warning message.
As part of the Mercedes S63 Brake Pad Replacement, these sensors would also need to be replaced.
Why Brake Pads Wear Prematurely on a Mercedes S63 AMG
Many owners are surprised when they require a Mercedes S63 Brake Pad Replacement sooner than expected.
Several factors contribute to accelerated brake wear on AMG models:
High Vehicle Performance
The Mercedes S63 AMG produces substantial horsepower and torque, placing enormous demands on the braking system.
Vehicle Weight
As a full-size luxury sedan, the S63 is significantly heavier than standard passenger vehicles, requiring greater braking force.
Driving Conditions
Frequent city driving, traffic congestion, and stop-and-go conditions accelerate brake pad wear.
AMG Brake System Characteristics
Performance brake compounds provide superior stopping power but often wear faster than conventional brake materials.
Regular brake inspections are essential to avoid costly rotor damage and maintain safe braking performance.
Recommended Repair Solution
Based on our inspection findings, the team at Car Garage Expert recommended a complete brake restoration service.
The approved repair plan included:
Front Brakes
- Replace front brake pads with genuine Mercedes-Benz brake pads.
- Replace front brake wear sensors.
- Skim front brake discs.
Rear Brakes
- Replace rear brake pads with genuine Mercedes-Benz brake pads.
- Replace rear brake wear sensors.
- Skim rear brake discs.
This comprehensive Mercedes S63 Brake Pad Replacement solution would restore braking performance while minimizing repair costs by saving the existing rotors.
Mercedes S63 Brake Pad Replacement Procedure
Step 1: Vehicle Preparation

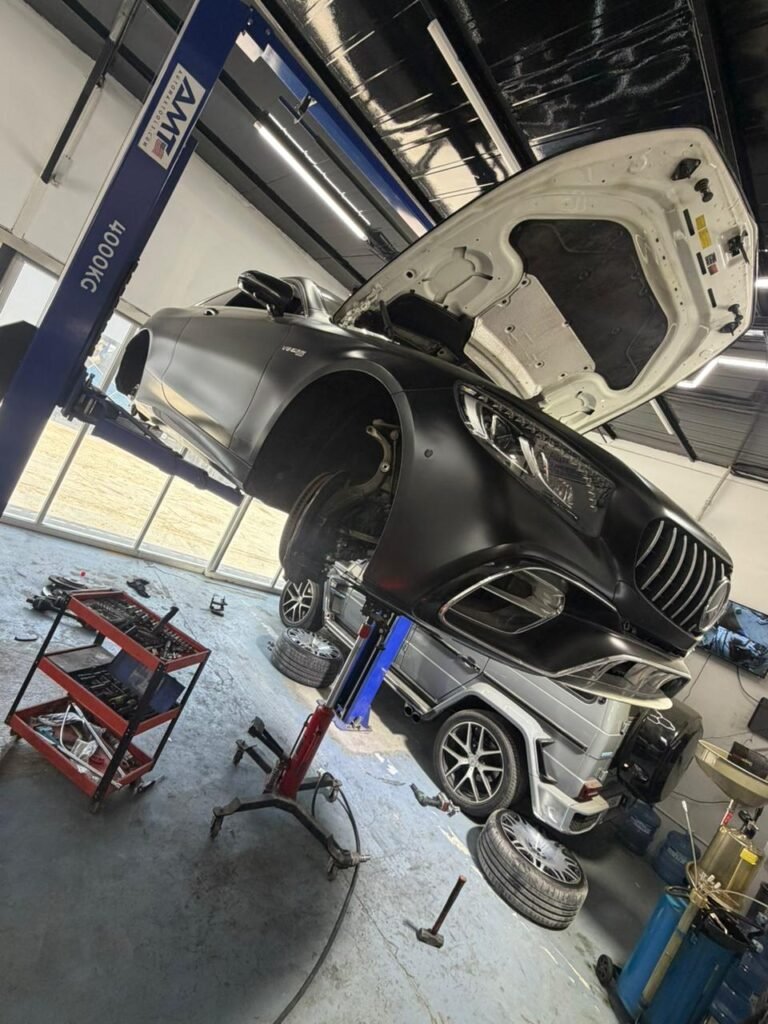

The vehicle was safely positioned on our professional hydraulic lift.
All four wheels were removed to allow complete access to the braking system.
During this stage, our technicians also inspected:
- Brake calipers
- Brake hoses
- Mounting hardware
- Rotor condition
No additional faults were found.
Step 2: Removal of Worn Brake Pads
The old brake pads were carefully removed from the front and rear brake calipers.
Inspection of the removed components confirmed severe wear.
The front pads had almost no usable friction material remaining, making this Mercedes S63 Brake Pad Replacement critical for vehicle safety.
Step 3: Replacement of Brake Wear Sensors
Mercedes-Benz brake wear sensors monitor pad thickness and inform drivers when pads require replacement.
The old sensors were already operational and were replaced with new genuine Mercedes sensors.
During a Mercedes S63 Brake Pad Replacement, the sensors are replaced to ensure that they will work properly and monitor accurately in the future.
Step 4: Brake Disc Skimming
After inspecting the rotor thickness and confirming it remained within the manufacturer’s specifications, we proceeded with disc skimming.
Disc skimming is a precision machining process that removes surface imperfections and restores a smooth braking surface.
All four brake discs were professionally skimmed using specialized equipment.
This allowed us to restore rotor performance without the additional expense of replacing the discs.
Step 5: Installation of Genuine Mercedes Brake Pads
Once the rotor resurfacing process was completed, our technicians installed new genuine Mercedes-Benz brake pads.
We highly recommend OEM parts for high-performance AMG vehicles at our garage, since we offer:
- Perfect fit
- Consistent brake performance
- Lower noise levels
- Improved durability
- Manufacturer’s approved quality standards
Use of original parts guarantees that Mercedes S63 Brake Pad Replacement meets the requirements of Mercedes-Benz.
Step 6: Reassembly and Final Checks
After installation, the braking system was carefully reassembled.
Our technicians ensure:
- All brake parts installed back
- Torque standard for hardware verified
- Wheels reinstalled
- Performed safety inspections
All Mercedes S63 Brake Pad Replacements carried out by Car Garage Expert are subject to strict quality control procedures before the vehicle is returned to its owner.
Final Testing and Verification
Once repairs were completed, the vehicle underwent comprehensive testing.
Dashboard System Reset
The brake service warning message was reset using advanced diagnostic equipment.
The system confirmed proper communication with the newly installed brake wear sensors.
Brake Performance Testing
Brake pedal feel was evaluated to ensure:
- Correct pedal response
- Consistent pressure
- Smooth operation
Everything performed according to factory specifications.
Road Test
A detailed road test was conducted to verify:
- Braking performance
- Noise minimisation
- Stability of the vehicle
- Good stopping
The outcomes were great.
The grinding noise was gone entirely and braking performance was at the level expected of a Mercedes-AMG vehicle.
Results After Repair
Following the successful Mercedes S63 Brake Pad Replacement, the customer immediately noticed substantial improvements.
Before Service
- Loud grinding brake noise
- The brake warning light is active.
- Severely worn brake pads
- Damaged rotor surfaces
- Reduced braking confidence
After Service
- Silent brake operation
- Dashboard warning removed
- New authentic Mercedes brake pads fitted
- New brake wear sensors fitted .
- All four discs professionally skimmed.
- Improved braking performance
- Increased safety and driving confidence
The customer was quite pleased with the outcomes provided by the Car Garage Expert team.
Why Choose Car Garage Expert for Mercedes Brake Repairs?
At Car Garage Expert, we specialize in servicing premium European vehicles, including Mercedes-Benz AMG models.
Our workshop offers:
- Mercedes-trained technicians
- Authentic OEM components
- Sophisticated diagnostic equipment
- Professional brake machine
- Full vehicle checks
- Clear advice on repairs
Whether you require annual maintenance or a Mercedes S63 Brake Pad Replacement, we’re committed to providing dealership grade results at affordable pricing.
Conclusion
This case study highlights the importance of a prompt Mercedes S63 Brake Pad Replacement to restore safety, performance, and driving comfort, and avoid costly repairs.
The Mercedes S63 came to Car Garage Expert with high wear on the brake pads, damaged disc surfaces, constant noise from the brakes and an active brake warning light. We completely restored the entire brake system with genuine Mercedes brake pads, new brake wear sensors and professional disc skimming on all four rotors bringing the vehicle back to optimum working condition.
If your Mercedes-Benz is displaying brake service warnings, producing unusual noises, or showing signs of reduced stopping performance, don’t wait until the damage becomes more severe. Contact Car Garage Expert today for a professional inspection and tailored brake repair solutions for your vehicle
